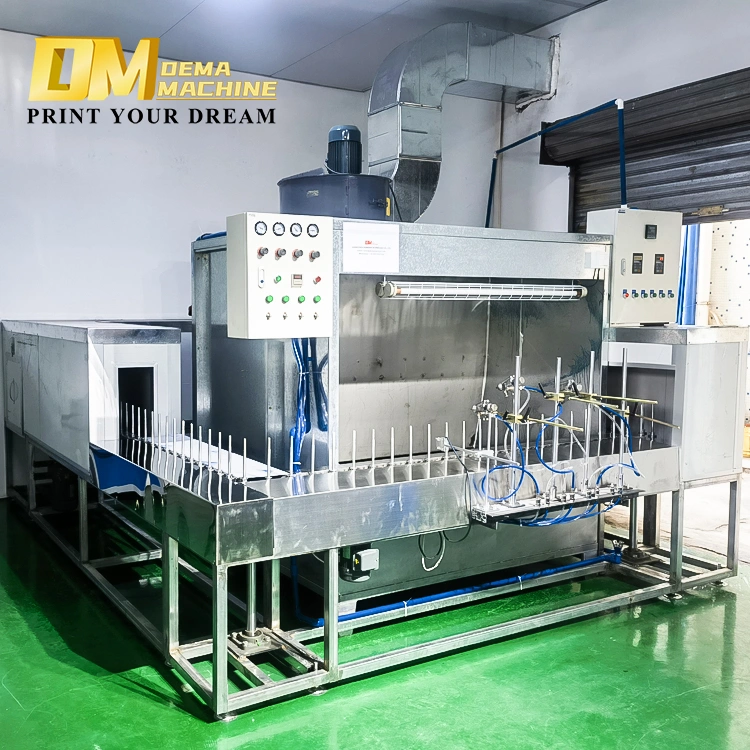

automatic conveyor glass bottle spray painting machine automated spray coating machine

DM-PT22

Description of design parameters;
1. Product: glass container spray painting line,
2. Product size: diameter
25-120mm*H30-180mm.
3. Sprocket diameter; 230mm
4. Total length of the chain is 22m
5. Pitch 50.8mm,
6. 420 sets of jigs are full fill
7. The line speed can be adjusted from 0.5-1
meter per minute,
8. Average output: 600pcs/h
9. Heating method: electric heating, curing
time is 20-25 minutes, and the baking tem_xfffe_perature can be adjusted within 200 degrees.
10. Equipment Electricity : three-phase
four-wire 380V 50-60HZ 24KW.
Weight：1500kg

minimum order

1 set

Supply Ability

100set / Month

Country of Origin

China

Stock Time

15Day

Quantity:

US $30600.00 - US $31600.00 / set

Contact Now

add to cart

Guangzhou Demasha Machine Technology Co, Ltd.
DEMA Machine Founded in 2009, with over 100 employees and 10,000 sqm factory, DEMA Machinehas over 12 years experiences in Printing machine. We have own Machine R&D Team, overseasengineer service available. DM/EM service available. High strict quality inspection for each machine. Cooperation with more than 100 enterprises. Hope we can cooperate in the future
One Stop Printing Machine
Support all machines about printing in 1 stop , save your time and cost
R & D Team
TWe have own and engineer for Mechanics
Private Custom
Meet your needs to custom the machine
Output Speed
Printing output speed can be1200pcs / Hour

Gross Power380V 50-60HZ 24KW

Automatic Grade:Automatic

Color/station: Multi Colors

The line speed can be adjusted from 0.5-1 meter per minute

Weight:1500 KG

Certification:ISO9001

Max. Print Area:diameter 25-120mm*H30-180mm.

Warranty:5 Years

Average output: 600pcs/h

Application area:Round, Oval, Square Bottles; Plastic, glass, metal products etc.
