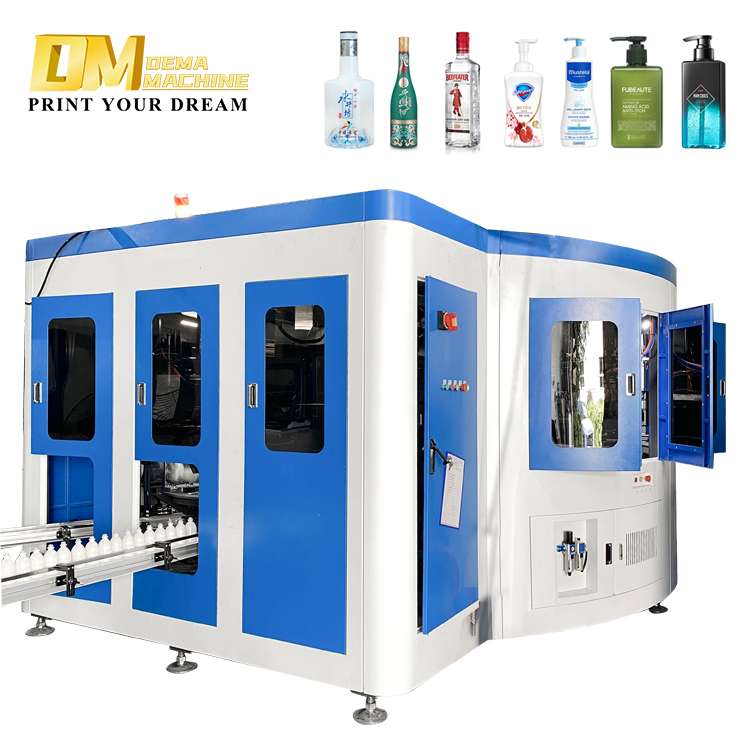

DM auto feeding and unloading 6 color UV automatic screen printing machine for soft tube plastic cup glass bottle

DM-601

DM-601 Fully automatic screen printing machine
Fit for shapes：Cylindrical, triangular, oval, polygon, etc
Output(pcs/min): 40-45 （print 6 colors at the same time )
Printing precision: 0.1mm
Print area: dia 1.5-10cm, length: 5-33cm
Air pressure(Mpa): 0.4-0.6 (4-6bar)
Power: AC380V 3P 50/60HZ 30KW
Dimensions(L*W*H): 4900mm *3860mm*2300mm
uploading belt size :1650mmX80mm
downloading belt size: 1650mmX80mm
Weight(kg): 9000

minimum order

1 set

Supply Ability

30set / Month

Country of Origin

China

Stock Time

20Day

Quantity:

US $165000.00 - US $168000.00 / set

Contact Now

add to cart

Guangzhou Demasha Machine Technology Co, Ltd.
DEMA Machine Founded in 2009, with over 100 employees and 10,000 sqm factory, DEMA Machinehas over 12 years experiences in Printing machine. We have own Machine R&D Team, overseasengineer service available. DM/EM service available. High strict quality inspection for each machine. Cooperation with more than 100 enterprises. Hope we can cooperate in the future
One Stop Printing Machine
Support all machines about printing in 1 stop , save your time and cost
R & D Team
TWe have own and engineer for Mechanics
Private Custom
Meet your needs to custom the machine
Output Speed
Printing output speed can be 40-45 pcs/min

Gross Power: AC380V 3P 50/60HZ 30KW

Automatic Grade:Automatic

Color/station:multi color

Dimensions(L*W*H):4900mm *3860mm*2300mm

Weight:9000 KG

Certification:ISO9001

Max. Print Area:dia 1.5-10cm, length: 5-33cm

Warranty: 5 Years

Printing speed:40-45 PCS/MIN

Application area:Round, Oval, Square Bottles; Plastic, glass, metal products etc.
