DM cup printing machine automatic silk printing machine plastic cup printing machine
DM-201

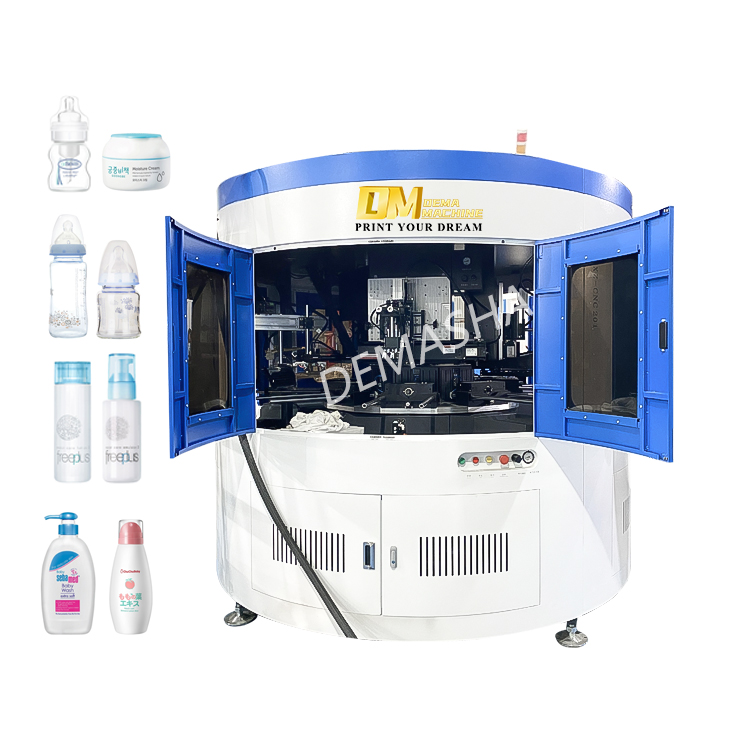

DM-201 Fully automatic screen printing machine
Fit for shapes：Round; Oval; Square
Output(pcs/min): 35-45
Print area: dia 1.5-10cm, length:5-33cm
Air pressure(Mpa): 0.4-0.6 (4-6bar)
Air sonsumption (L/min): 200
Power: AC380V 3P 50/60HZ 30KW
Dimensions(L*W*H): 254 * 236*225cm
uploading belt size :165*8*110cm
downloading belt size: 165×8×110cm
Weight(kg): 3000
Fit for shapes：Round; Oval; Square
Output(pcs/min): 35-45
Print area: dia 1.5-10cm, length:5-33cm
Air pressure(Mpa): 0.4-0.6 (4-6bar)
Air sonsumption (L/min): 200
Power: AC380V 3P 50/60HZ 30KW
Dimensions(L*W*H): 254 * 236*225cm
uploading belt size :165*8*110cm
downloading belt size: 165×8×110cm
Weight(kg): 3000
minimum order
1 set
Supply Ability
10set / Month
Country of Origin
China
Stock Time
20Day
Quantity:
US $92500.00 - US $94000.00 / set
Equipment features:
1. The design of all the structures of the equipment is based on international mechanical standards, integrated into the design concept of European and American automatic machinery equipment, accurate color, high speed, simple debugging.
2 High precision splitter and full servo control system are adopted to improve the color accuracy and stability of the product. Advanced modular program controller and touch screen operation control, convenient and flexible debugging, high degree of automation, simple and quick parameter setting, easy to achieve man-machine dialogue.
3. The machine combines mechanical transmission and pneumatic, adopts photoelectric sensor induction limit control, stable and reliable operation, ensuring printing accuracy and high quality printing effect.
4. With no printing, no material alarm, low air pressure alarm, overload and unloading fault alarm and other automatic detection functions to ensure the continuity and stability of the whole machine operation.
5. The main frame of the product is welded with high-quality steel parts, the main machine adopts circular design, transparent plexiglass protection door, which shows the humanization and operation safety in appearance design, in line with European safety standards; The feed conveying mechanism and discharge conveying mechanism can be lengthened or shortened according to the specific requirements of the equipment user.
6. Pneumatic components and electrical components used in the equipment are SMC, KEYENCE, and other well-known brands to optimize quality assurance performance.
7. Color positioning adopts high-precision visual positioning. UV curing uses low energy consumption and high efficiency LED curing.
8. Automatic cutting by manipulator.
Guangzhou Demasha Machine Technology Co, Ltd.
DEMA Machine Founded in 2009, with over 100 employees and 10,000 sqm factory, DEMA Machinehas over 12 years experiences in Printing machine. We have own Machine R&D Team, overseasengineer service available. DM/EM service available. High strict quality inspection for each machine. Cooperation with more than 100 enterprises. Hope we can cooperate in the future
One Stop Printing Machine
Support all machines about printing in 1 stop , save your time and cost
R & D Team
TWe have own and engineer for Mechanics
Private Custom
Meet your needs to custom the machine
Output Speed
Printing output speed can be 40-45 pcs / Hour
1. The design of all the structures of the equipment is based on international mechanical standards, integrated into the design concept of European and American automatic machinery equipment, accurate color, high speed, simple debugging.
2 High precision splitter and full servo control system are adopted to improve the color accuracy and stability of the product. Advanced modular program controller and touch screen operation control, convenient and flexible debugging, high degree of automation, simple and quick parameter setting, easy to achieve man-machine dialogue.
3. The machine combines mechanical transmission and pneumatic, adopts photoelectric sensor induction limit control, stable and reliable operation, ensuring printing accuracy and high quality printing effect.
4. With no printing, no material alarm, low air pressure alarm, overload and unloading fault alarm and other automatic detection functions to ensure the continuity and stability of the whole machine operation.
5. The main frame of the product is welded with high-quality steel parts, the main machine adopts circular design, transparent plexiglass protection door, which shows the humanization and operation safety in appearance design, in line with European safety standards; The feed conveying mechanism and discharge conveying mechanism can be lengthened or shortened according to the specific requirements of the equipment user.
6. Pneumatic components and electrical components used in the equipment are SMC, KEYENCE, and other well-known brands to optimize quality assurance performance.
7. Color positioning adopts high-precision visual positioning. UV curing uses low energy consumption and high efficiency LED curing.
8. Automatic cutting by manipulator.
Guangzhou Demasha Machine Technology Co, Ltd.
DEMA Machine Founded in 2009, with over 100 employees and 10,000 sqm factory, DEMA Machinehas over 12 years experiences in Printing machine. We have own Machine R&D Team, overseasengineer service available. DM/EM service available. High strict quality inspection for each machine. Cooperation with more than 100 enterprises. Hope we can cooperate in the future
One Stop Printing Machine
Support all machines about printing in 1 stop , save your time and cost
R & D Team
TWe have own and engineer for Mechanics
Private Custom
Meet your needs to custom the machine
Output Speed
Printing output speed can be 40-45 pcs / Hour
| Gross Power AC380V 3P 50/60HZ 30KW |
| Automatic Grade:Automatic |
| Color/station:2 Colors Multi-Station |
| Dimensions(L*W*H): 400 * 264*214cm |
| Weight:4500 KG |
| Certification:ISO9001 |
| Max. Print Area:dia 1.5-10cm, length:5-33cm |
| Warranty: 5 Years |
| Printing speed:40-45 PCS/MIN |
| Application area:Round, Oval, Square Bottles; Plastic, glass, metal products etc. |
