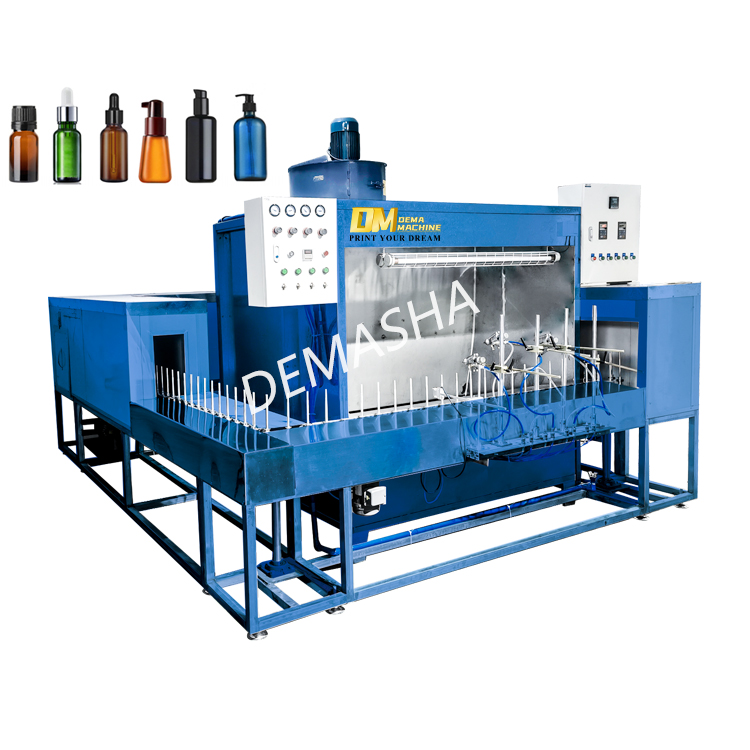

DM factory custom one-stop perfume bottle spray coating machine for glass bottle painting machine
DM-PT22
Description of design parameters;
1. Product: glass container spray painting line,
2. Product size: diameter
25-120mm*H30-180mm.
3. Sprocket diameter; 230mm
4. Total length of the chain is 22m
5. Pitch 50.8mm,
6. 420 sets of jigs are full fill
7. The line speed can be adjusted from 0.5-1
meter per minute,
8. Average output: 600pcs/h
9. Heating method: electric heating, curing
time is 20-25 minutes, and the baking temperature can be adjusted within 200 degrees.
10. Equipment Electricity : three-phase
four-wire 380V 50-60HZ 24KW.
Weight：1500kg
Machine Size: 1750*2300*1800mm
1. Product: glass container spray painting line,
2. Product size: diameter
25-120mm*H30-180mm.
3. Sprocket diameter; 230mm
4. Total length of the chain is 22m
5. Pitch 50.8mm,
6. 420 sets of jigs are full fill
7. The line speed can be adjusted from 0.5-1
meter per minute,
8. Average output: 600pcs/h
9. Heating method: electric heating, curing
time is 20-25 minutes, and the baking temperature can be adjusted within 200 degrees.
10. Equipment Electricity : three-phase
four-wire 380V 50-60HZ 24KW.
Weight：1500kg
Machine Size: 1750*2300*1800mm
minimum order
1 set
Supply Ability
20set / Month
Country of Origin
China
Stock Time
30Day
Quantity:
US $30600.00 - US $31600.00 / set
Machine Feature：

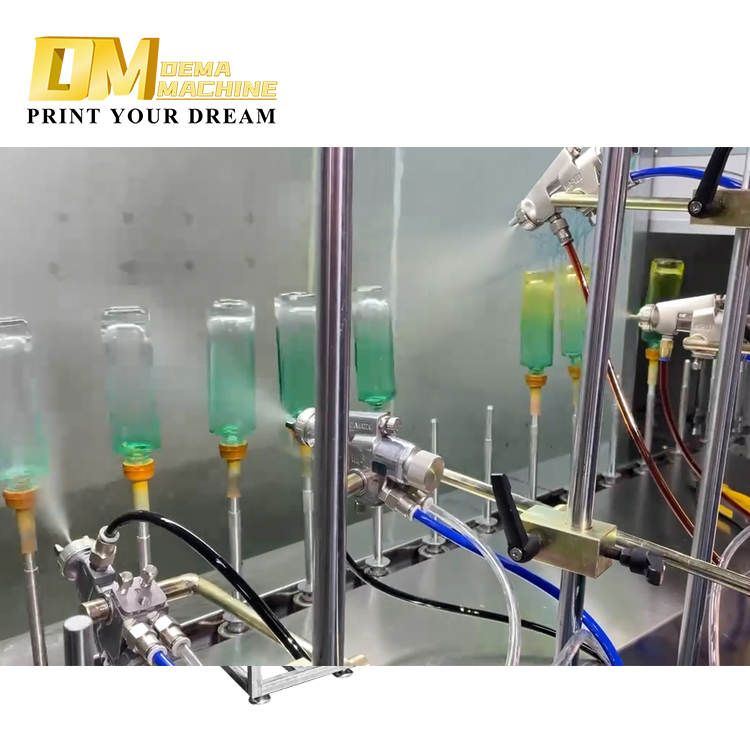

1. Automatic spray paint line includes the Preheating, automatic spraying paint, automatic drying and automatic cooling. Save labor and cost, improve the efficiency.
2. Spray evenly, high precision, the running accuracy is within 0.2mm, the spraying accuracy is within 0.2-1mm.
3. Flexible spraying size can save 20% paint.
4. High efficiency, can reach continuous work for 24 hours, the output is 3-5 times than the labor.
5. Spraying debugging is simple within ten mins. The program is easy to operate.
6. Automatic spray paint line are widely used to the workpiece which will be achieve high efficiency , high output.
7. Spraying painting machine can paint multi colors of product simultaneously.
Guangzhou Demasha Machine Technology Co, Ltd.
DEMA Machine Founded in 2009, with over 100 employees and 10,000 sqm factory, DEMA Machinehas over 12 years experiences in Printing machine. We have own Machine R&D Team, overseasengineer service available. DM/EM service available. High strict quality inspection for each machine. Cooperation with more than 100 enterprises. Hope we can cooperate in the future
One Stop Printing Machine
Support all machines about printing in 1 stop , save your time and cost
R & D Team
TWe have own and engineer for Mechanics
Private Custom
Meet your needs to custom the machine
Output Speed
output speed can be 600 pcs / Hour
1. Automatic spray paint line includes the Preheating, automatic spraying paint, automatic drying and automatic cooling. Save labor and cost, improve the efficiency.
2. Spray evenly, high precision, the running accuracy is within 0.2mm, the spraying accuracy is within 0.2-1mm.
3. Flexible spraying size can save 20% paint.
4. High efficiency, can reach continuous work for 24 hours, the output is 3-5 times than the labor.
5. Spraying debugging is simple within ten mins. The program is easy to operate.
6. Automatic spray paint line are widely used to the workpiece which will be achieve high efficiency , high output.
7. Spraying painting machine can paint multi colors of product simultaneously.
Guangzhou Demasha Machine Technology Co, Ltd.
DEMA Machine Founded in 2009, with over 100 employees and 10,000 sqm factory, DEMA Machinehas over 12 years experiences in Printing machine. We have own Machine R&D Team, overseasengineer service available. DM/EM service available. High strict quality inspection for each machine. Cooperation with more than 100 enterprises. Hope we can cooperate in the future
One Stop Printing Machine
Support all machines about printing in 1 stop , save your time and cost
R & D Team
TWe have own and engineer for Mechanics
Private Custom
Meet your needs to custom the machine
Output Speed
output speed can be 600 pcs / Hour
| Gross PowerAC 380V 50-60HZ 24KW |
| Automatic Grade:Automatic |
| Color/station:3 Colors Multi-Station |
| Dimensions(L*W*H):1750*2300*1800mm |
| Weight:1500kg |
| Certification:ISO9001 |
| Max. Print Area:diameter 25-120mm*H30-180mm |
| Warranty:5 Years |
| Printing speed:600 pcs/hour |
| Application area:Round, Oval, Square Bottles; Plastic, glass, metal products etc. |
