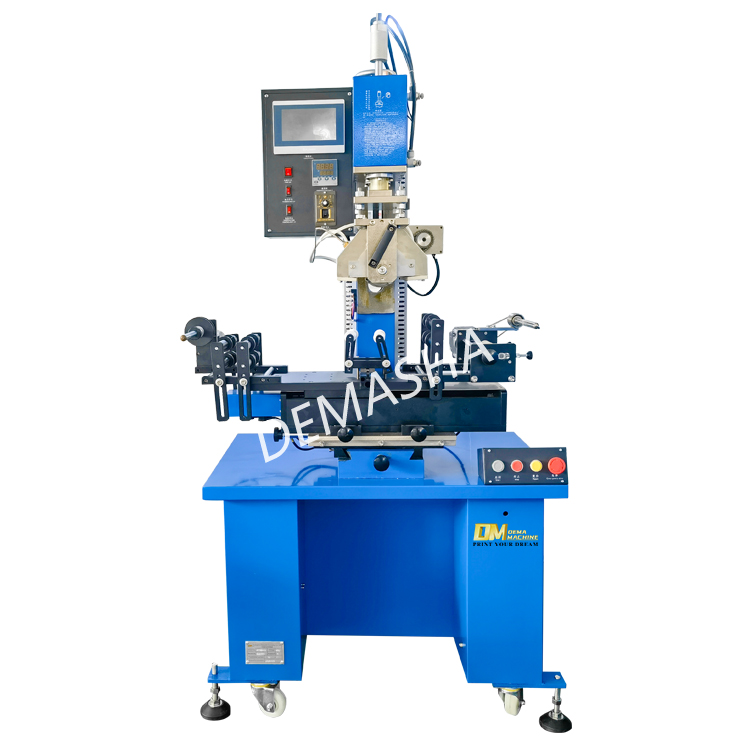

DM Factory Direct manual glass hot stamping machine for glass bottle

DM-2B-S

Auto screen printing machine
Fit for Round, flat shaped
Output(pcs/min): 10-45 pcs/min
Max Printing Area: Circum: 220mm height: 120mm (round bottle)
Max Printing Area: Circum: 220mm height: 130mm (flat bottle)
Printing model size: Model height:30-120mm Model dia.:Φ20~70mm (round bottle)
Printing model size: Model height:30-120mm Model dia.:L*W≤120mm (flat bottle)
Power : AC220V 2Phase 50/60HZ 3.8KW
Air pressure(Mpa): 0.5-0.7 (5-7bar)
Air sonsumption (L/min): 50
Dimensions(L*W*H): 1000*700*1700mm
Weight(kg): 230

minimum order

1 set

Supply Ability

100set / Month

Country of Origin

China

Stock Time

15Day

Quantity:

US $4500.00 - US $4700.00 / set

Contact Now

add to cart

Guangzhou Demasha Machine Technology Co, Ltd.
DEMA Machine Founded in 2009, with over 100 employees and 10,000 sqm factory, DEMA Machinehas over 12 years experiences in Printing machine. We have own Machine R&D Team, overseasengineer service available. DM/EM service available. High strict quality inspection for each machine. Cooperation with more than 100 enterprises. Hope we can cooperate in the future
One Stop Printing Machine
Support all machines about printing in 1 stop , save your time and cost
R & D Team
TWe have own and engineer for Mechanics
Private Custom
Meet your needs to custom the machine
Output Speed
Printing output speed can be 10-45 pcs/min

Gross PowerAC220V 2Phase 50/60HZ 3.8KW

Automatic Grade: Semi Automatic

Color/station:1 color 1 station

Dimensions(L*W*H):1000*700*1700mm

Weight:230 KG

Certification:ISO9001

Max. Print Area:Circum:220mm,height:120mm(round bottle),Circum:220mm,height:130mm (flat bottle)

Warranty: 5 Years

Printing speed:10-45 PCS/MIN

Application area:Round, Oval, Square Bottles; Plastic, glass, metal products etc.
