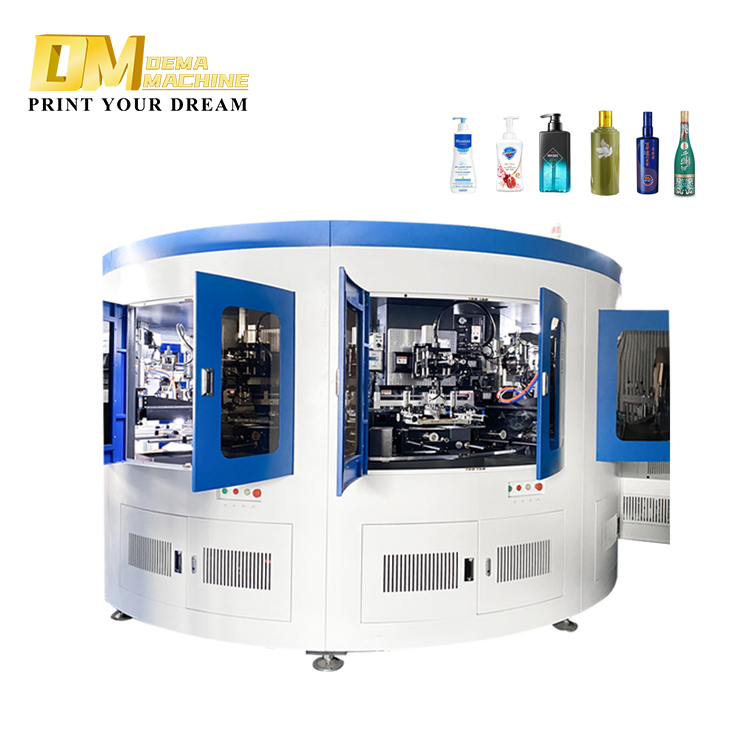

DM Multi color automatic bottle screen printing machine cap glass bottle plastic cup printing machine

DM-601

DM-601 Fully automatic screen printing machine
Fit for shapes：Cylindrical, triangular, oval, polygon, etc
Output(pcs/min): 40-45 （print 6 colors at the same time )
Printing precision: 0.1mm
Print area: dia 1.5-10cm, length: 5-33cm
Air pressure(Mpa): 0.4-0.6 (4-6bar)
Power: AC380V 3P 50/60HZ 30KW
Dimensions(L*W*H): 4900mm *3860mm*2300mm
uploading belt size :1650mmX80mm
downloading belt size: 1650mmX80mm
Weight(kg): 9000

minimum order

1 set

Supply Ability

20set / Month

Country of Origin

China

Stock Time

25Day

Quantity:

US $16500.00 - US $16800.00 / set

Contact Now

add to cart

Equipment features:

1. The design of all the structures of the equipment is based on international mechanical standards, integrated into the design concept of European and American automatic machinery equipment, accurate color, high speed, simple debugging.
2 High precision splitter and full servo control system are adopted to improve the color accuracy and stability of the product. Advanced modular program controller and touch screen operation control, convenient and flexible debugging, high degree of automation, simple and quick parameter setting, easy to achieve man-machine dialogue.
3. The machine combines mechanical transmission and pneumatic, adopts photoelectric sensor induction limit control, stable and reliable operation, ensuring printing accuracy and high quality printing effect.
4. With no printing, no material alarm, low air pressure alarm, overload and unloading fault alarm and other automatic detection functions to ensure the continuity and stability of the whole machine operation.
5. The main frame of the product is welded with high-quality steel parts, the main machine adopts circular design, transparent plexiglass protection door, which shows the humanization and operation safety in appearance design, in line with European safety standards; The feed conveying mechanism and discharge conveying mechanism can be lengthened or shortened according to the specific requirements of the equipment user.
6. Pneumatic components and electrical components used in the equipment are SMC, KEYENCE, and other well-known brands to optimize quality assurance performance.
7. Color positioning adopts high-precision visual positioning. UV curing uses low energy consumption and high efficiency LED curing.
8. Automatic cutting by manipulator.

Guangzhou Demasha Machine Technology Co, Ltd.
DEMA Machine Founded in 2009, with over 100 employees and 10,000 sqm factory, DEMA Machinehas over 12 years experiences in Printing machine. We have own Machine R&D Team, overseasengineer service available. DM/EM service available. High strict quality inspection for each machine. Cooperation with more than 100 enterprises. Hope we can cooperate in the future
One Stop Printing Machine
Support all machines about printing in 1 stop , save your time and cost
R & D Team
TWe have own and engineer for Mechanics
Private Custom
Meet your needs to custom the machine
Output Speed
Printing output speed can be 40-45 （print 6 colors at the same time )

Gross Power: AC380V 3P 50/60HZ 30KW

Automatic Grade: Automatic

Color/station: 6 Colors Multi-Station

Dimensions(L*W*H):4900mm *3860mm*2300mm

Weight:9000kg

Certification:ISO9001

Max. Print Area:dia 1.5-10cm, length: 5-33cm

Warranty: 5 Years

Printing speed:40-45 PCS/MIN

Application area:Round, Oval, Square Bottles; Plastic, glass, metal products etc.
