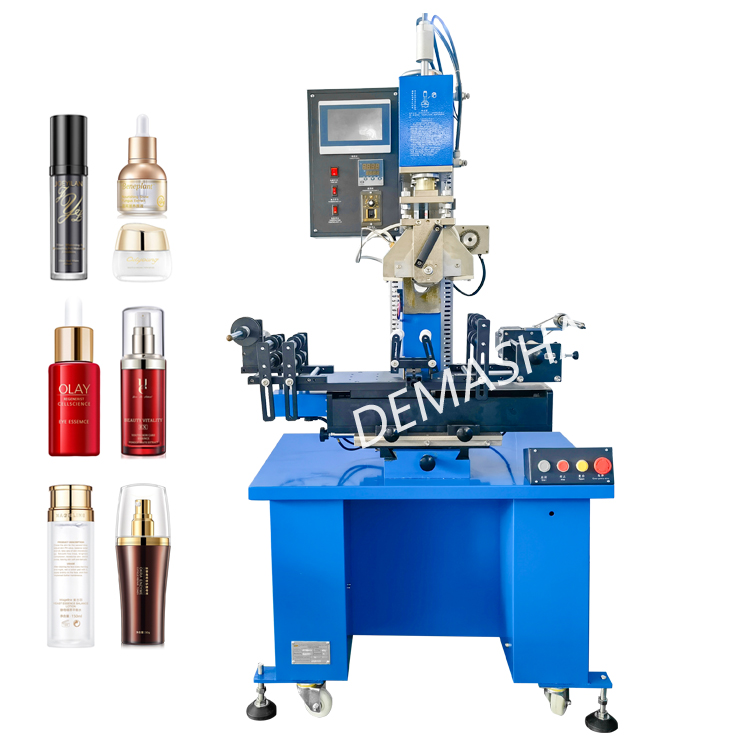

DM Semi Automatic Servo hot foil stamping machine for round flat square glass bottle

DM-2B-S
Fit for Round, flat shaped
Output(pcs/min): 10-45 pcs/min
Max Printing Area: Circum: 220mm , height: 120mm (round bottle)
Circum:220mm ,height: 130mm (flat bottle)
Printing model size: Model height:30-120mm Model dia.:Φ20~70mm (round bottle)
Printing model size: Model height:30-120mm Model dia.:L*W≤120mm (flat bottle)
Power : AC220V 2Phase 50/60HZ
Air pressure(Mpa): 0.5-0.7 (5-7bar)
Air sonsumption (L/min): 50
Dimensions(L*W*H): 1000*700*1700mm
Weight(kg): 230

Application:
This machine is suitable for plastic packaging, jewelry, toys, glasses, glass bottles and so on
Quantity:
Contact Now
add to cart

Functional features:
1. This machine is suitable for stamping flat, round products, only need to replace the fixture
2. The original parts are Europe and the United States (Schneider), Taiwan (Dongweiting), Japan (SMC) and other world famous brands
3. The machine adopts PLC and touch screen control, the left and right sliding adopts servo motor drive, the running speed is fast and more stable
4. Paper receiving motor adopts high-end stepper motor, paper receiving is more accurate, thus reducing the cost of hot stamping paper

Application:
This machine is suitable for plastic packaging, jewelry, toys, glasses, glass bottles and so on
