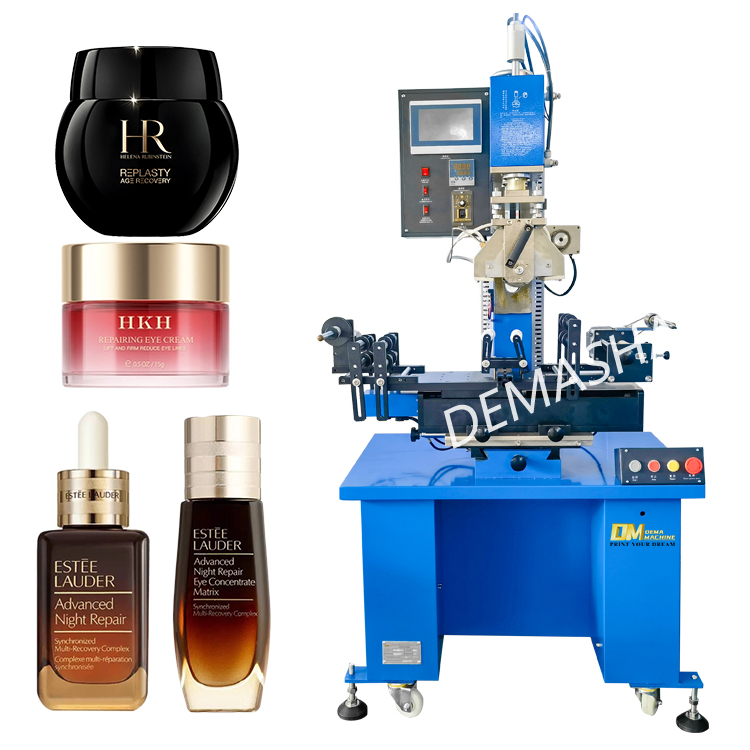

DM small automatic hot foil stamping machine cosmetic logo for plastic bottles glass bottle
DM-2B-S
semi Auto screen printing machine
Fit for Round, flat shaped
Output(pcs/min): 10-45 pcs/min
Max Printing Area: Circum: 220mm , height: 120mm (round bottle)
Circum:220mm ,height: 130mm (flat bottle)
Printing model size: Model height:30-120mm Model dia.:Φ20~70mm (round bottle)
Printing model size: Model height:30-120mm Model dia.:L*W≤120mm (flat bottle)
Power : AC220V 2Phase 50/60HZ
Air pressure(Mpa): 0.5-0.7 (5-7bar)
Air sonsumption (L/min): 50
Dimensions(L*W*H): 1000*700*1700mm
Weight(kg): 230
Fit for Round, flat shaped
Output(pcs/min): 10-45 pcs/min
Max Printing Area: Circum: 220mm , height: 120mm (round bottle)
Circum:220mm ,height: 130mm (flat bottle)
Printing model size: Model height:30-120mm Model dia.:Φ20~70mm (round bottle)
Printing model size: Model height:30-120mm Model dia.:L*W≤120mm (flat bottle)
Power : AC220V 2Phase 50/60HZ
Air pressure(Mpa): 0.5-0.7 (5-7bar)
Air sonsumption (L/min): 50
Dimensions(L*W*H): 1000*700*1700mm
Weight(kg): 230
minimum order
1 set
Supply Ability
1000set / Month
Country of Origin
China
Stock Time
15Day
Quantity:
US $4500.00 - US $4700.00 / set
Machine Feature:
1. This machine is suitable for stamping flat, round products, only need to replace the fixture
2. The original parts are Europe and the United States (Schneider), Taiwan (Dongweiting), Japan (SMC) and other world famous brands
3. The machine adopts PLC and touch screen control, the left and right sliding adopts servo motor drive, the running speed is fast and more stable
4. Paper receiving motor adopts high-end stepper motor, paper receiving is more accurate, thus reducing the cost of hot stamping paper
1. This machine is suitable for stamping flat, round products, only need to replace the fixture
2. The original parts are Europe and the United States (Schneider), Taiwan (Dongweiting), Japan (SMC) and other world famous brands
3. The machine adopts PLC and touch screen control, the left and right sliding adopts servo motor drive, the running speed is fast and more stable
4. Paper receiving motor adopts high-end stepper motor, paper receiving is more accurate, thus reducing the cost of hot stamping paper
Application:
This machine is suitable for plastic packaging, jewelry, toys, glasses, glass bottles and so on
This machine is suitable for plastic packaging, jewelry, toys, glasses, glass bottles and so on
Guangzhou Demasha Machine Technology Co, Ltd.
DEMA Machine Founded in 2009, with over 100 employees and 10,000 sqm factory, DEMA Machinehas over 12 years experiences in Printing machine. We have own Machine R&D Team, overseasengineer service available. DM/EM service available. High strict quality inspection for each machine. Cooperation with more than 100 enterprises. Hope we can cooperate in the future
One Stop Printing Machine
Support all machines about printing in 1 stop , save your time and cost
R & D Team
TWe have own and engineer for Mechanics
Private Custom
Meet your needs to custom the machine
Output Speed
Printing output speed can be 10-45 pcs/min
| Gross PowerAC220V 2Phase 50/60HZ |
| Automatic Grade: Semi Automatic |
| Color/station: Multi Colors 1 Station |
| Dimensions(L*W*H):1000*700*1700mm |
| Weight:230 KG |
| Certification:ISO9001 |
| Max. Print Area:Circum: 220mm , height: 120mm (round bottle) Circum:220mm ,height: 130mm (flat bottle) |
| Warranty:5 Years |
| Printing speed:10-45 PCS/MIN |
| Application area:Round, Oval, Square Bottles; Plastic, glass, metal products etc. |
