DM tube perfume bottle glass bottle printing machine paper cup printer silk screen printing machine

DM-650-4S

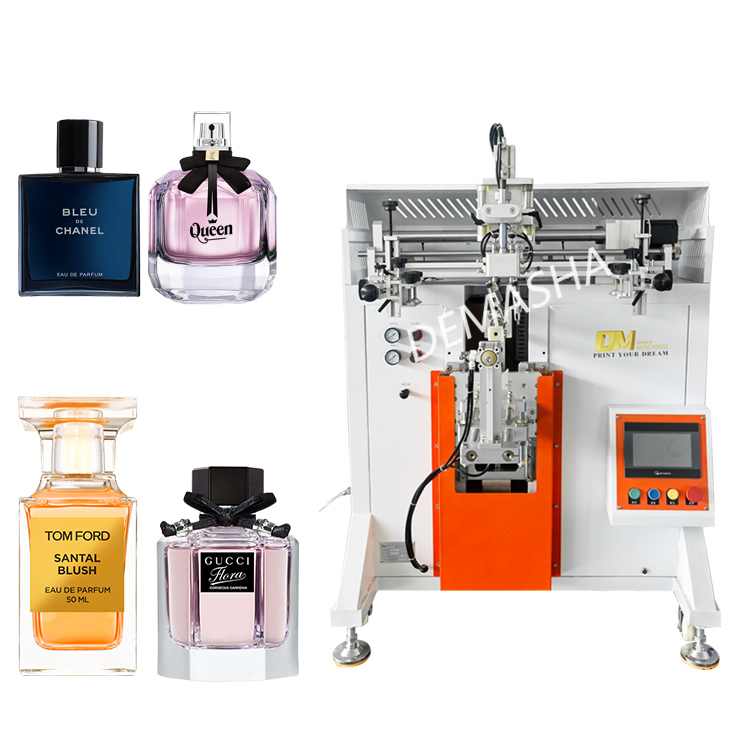

Semi auto screen printing machine
Max. printing size(mm)：round 260*200mm;
oval & shaped bottle & polygons 260*180mm
Printing size(mm):
round Φ20-Φ80mm;
oval & shaped bottles R20-300mm;
polygons bottle L*W≦260mm;
Speed (pcs/min): 30-45 pcs/min
Power : AC220V 3Phase 50/60HZ 3KW
Dimension(L*W*H)：1030*760*1340mm
Weight(kg)：300
Press(bar)：0.5-0.7
fit for：round,oval,shaped,polygons

minimum order

1 set

Supply Ability

1000set / Month

Country of Origin

China

Stock Time

15Day

Quantity:

US $9960.00 - US $10500.00 / set

Contact Now

add to cart

Functional features:

This machine is suitable for fan-shaped, round and oval, square, shaped bottles (two sides of the arc is not the same), cone and other shaped containers surface screen printing. It has the advantages of convenient debugging and installation, stable and reliable operation, strong versatility, high positioning accuracy, accurate color and high printing efficiency. This machine can also use ordinary self-drying ink printing, UV ink printing, high temperature solid ink printing, with high adaptability.

Outstanding advantages for the following bottle shapes and situations:
1, the oval bottle can achieve one-time printing with the same color on both sides, greatly improving the printing speed, and can also be printed on one side.
2, the square plane of the bottle can achieve one side to four sides of the same color one-time printing, you can also choose one side to four sides of any printing surface.
3, round, oval, square and taper bottle shape can be adjusted cone for printing. And the printing effect is good, to solve the traditional process printing pattern stretching, deformation and other technical problems.

Machine structure features:

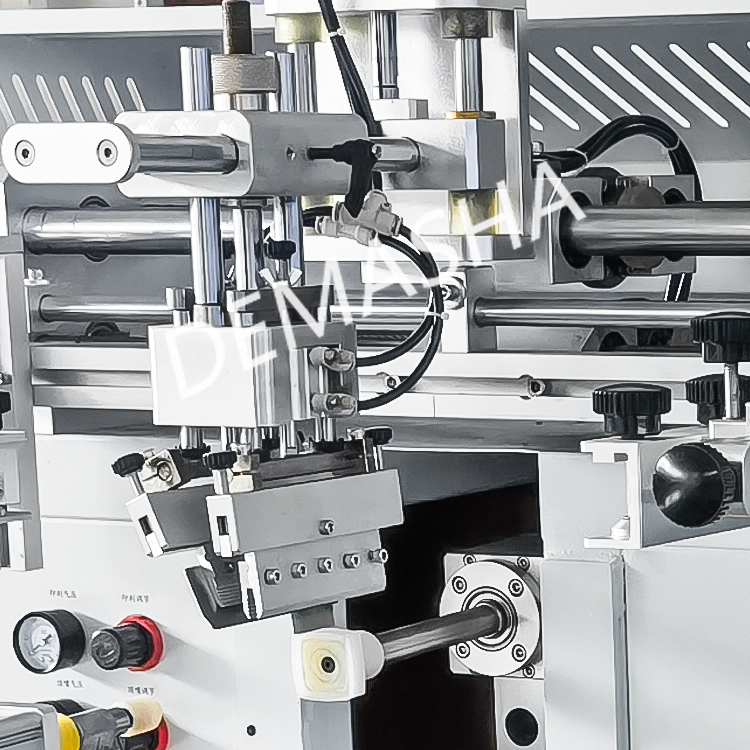

Machine structure master loading structure, whole servo system position transfer structure, automatic printing main body (printing system). Using modular program control processor and touch screen display control system, running more smoothly. Less fixture easy to replace the bottle shape, simple debugging and installation, more convenient operation. Optional color calibration, machine stability, high precision, accurate color.

Application: This machine is suitable for glass products packaging, wine bottle packaging, cosmetics packaging, medicine and food packaging containers, the material can be glass, plastic, ceramic, metal and so on.

Guangzhou Demasha Machine Technology Co, Ltd.
DEMA Machine Founded in 2009, with over 100 employees and 10,000 sqm factory, DEMA Machinehas over 12 years experiences in Printing machine. We have own Machine R&D Team, overseasengineer service available. DM/EM service available. High strict quality inspection for each machine. Cooperation with more than 100 enterprises. Hope we can cooperate in the future
One Stop Printing Machine
Support all machines about printing in 1 stop , save your time and cost
R & D Team
TWe have own and engineer for Mechanics
Private Custom
Meet your needs to custom the machine
Output Speed
Printing output speed can be 30-45 pcs/min

Gross Power AC220V 3Phase 50/60HZ 3KW

Automatic Grade: Semi Automatic

Color/station: multi Colors 1 Station

Dimensions(L*W*H):1030*760*1340mm

Weight:300 KG

Certification:ISO9001

Max. Print Area:round 260*200mm;
oval & shaped bottle & polygons 260*180mm

Warranty: 5 Years

Printing speed: 30-45 PCS/MIN

Application area:Round, Oval, Square Bottles; Plastic, glass, metal products etc.
