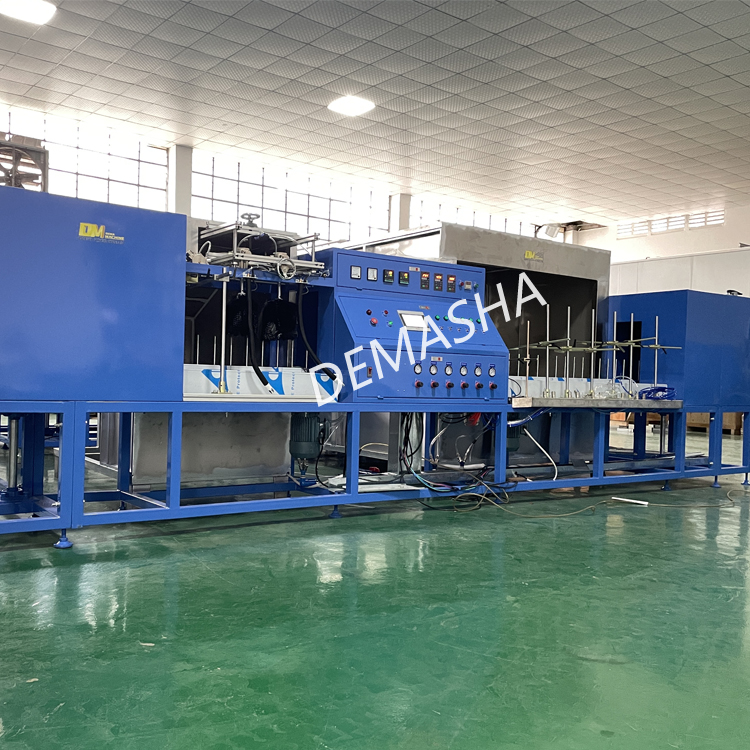

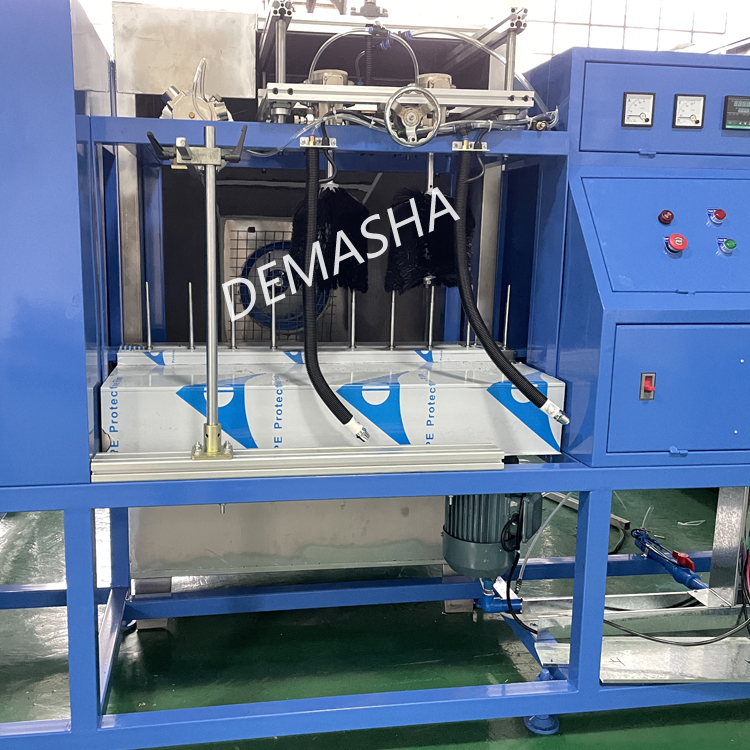

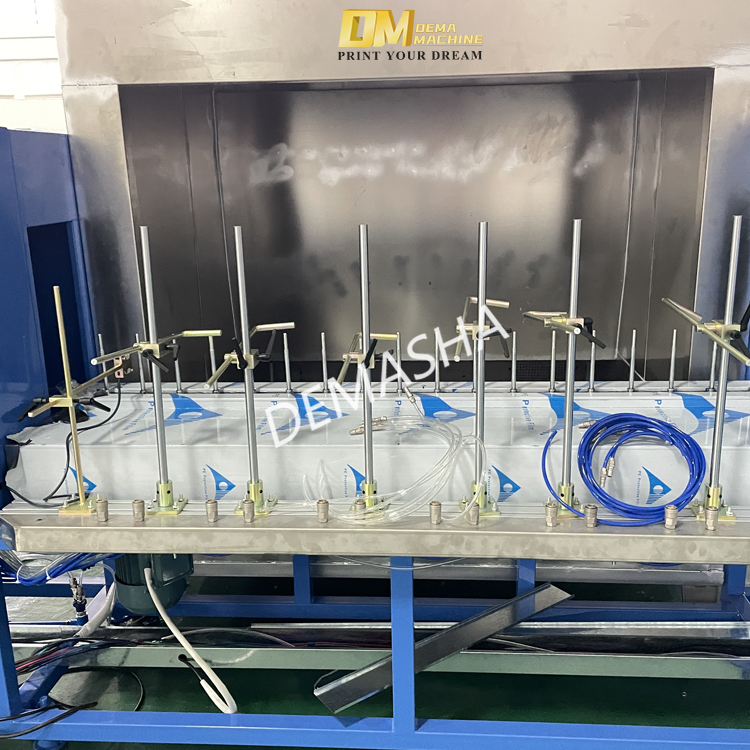

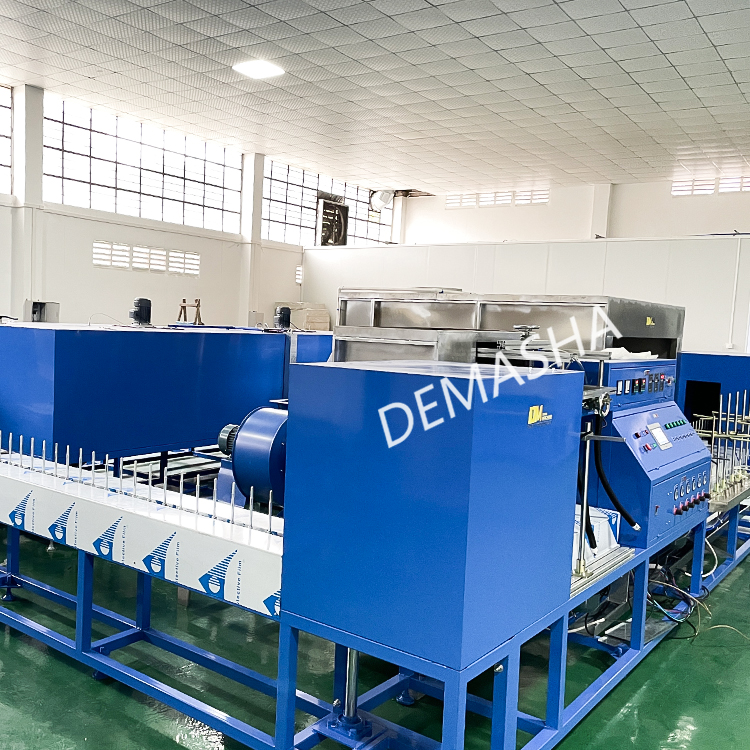

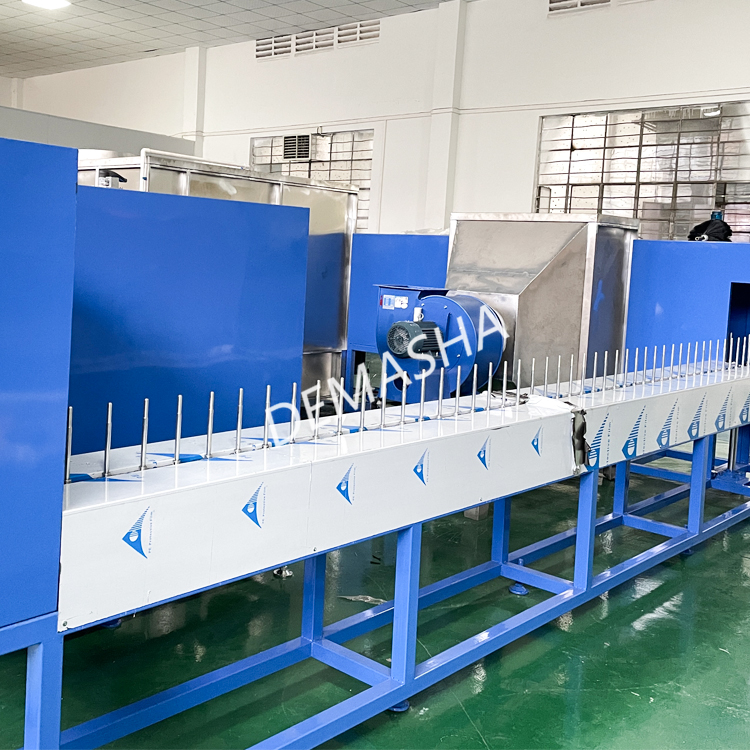

DM uv automatic spray coating machine price perfume bottle spray painting machine
DM-PT45
1. Product type: glass bottle spray painting
2. Product size: product diameter 25-120mm*H30-180mm
3.Sprocket diameter:250mm.
4. Total chain length: 45m.
5.Pitch 38.l mm
6. 585 fixtures, Interval installation
7. The line speed can be adjusted from 0.5-1.5 m/min,
8. Average output: 1200/hour
9. Heating method: electric heating, curing time 20-25 min-utes, heating temperature can be adjusted within 200 C.
10. Electricity for equipment: three-phase four-wire 380V 50-60HZ 24KW.
11.Machine size：L2300*W1750*H1850mm
12. Weight:1740kg
2. Product size: product diameter 25-120mm*H30-180mm
3.Sprocket diameter:250mm.
4. Total chain length: 45m.
5.Pitch 38.l mm
6. 585 fixtures, Interval installation
7. The line speed can be adjusted from 0.5-1.5 m/min,
8. Average output: 1200/hour
9. Heating method: electric heating, curing time 20-25 min-utes, heating temperature can be adjusted within 200 C.
10. Electricity for equipment: three-phase four-wire 380V 50-60HZ 24KW.
11.Machine size：L2300*W1750*H1850mm
12. Weight:1740kg
minimum order
1 set
Supply Ability
10set / Month
Country of Origin
China
Stock Time
30Day
Quantity:
US $37800.00 - US $38800.00 / set
Machine Feature：
1. Automatic spray paint line includes the Preheating, automatic spraying paint, automatic drying and automatic cooling. Save labor and cost, improve the efficiency.
2. Spray evenly, high precision, the running accuracy is within 0.2mm, the spraying accuracy is within 0.2-1mm.
3. Flexible spraying size can save 20% paint.
4. High efficiency, can reach continuous work for 24 hours, the output is 3-5 times than the labor.
5. Spraying debugging is simple within ten mins. The program is easy to operate.
6. Automatic spray paint line are widely used to the workpiece which will be achieve high efficiency , high output.
7. Spraying painting machine can paint multi colors of product simultaneously.
Guangzhou Demasha Machine Technology Co, Ltd.
DEMA Machine Founded in 2009, with over 100 employees and 10,000 sqm factory, DEMA Machinehas over 12 years experiences in Printing machine. We have own Machine R&D Team, overseasengineer service available. DM/EM service available. High strict quality inspection for each machine. Cooperation with more than 100 enterprises. Hope we can cooperate in the future
One Stop Printing Machine
Support all machines about printing in 1 stop , save your time and cost
R & D Team
TWe have own and engineer for Mechanics
Private Custom
Meet your needs to custom the machine
Output Speed
Printing output speed can be 1200pcs / Hour
1. Automatic spray paint line includes the Preheating, automatic spraying paint, automatic drying and automatic cooling. Save labor and cost, improve the efficiency.
2. Spray evenly, high precision, the running accuracy is within 0.2mm, the spraying accuracy is within 0.2-1mm.
3. Flexible spraying size can save 20% paint.
4. High efficiency, can reach continuous work for 24 hours, the output is 3-5 times than the labor.
5. Spraying debugging is simple within ten mins. The program is easy to operate.
6. Automatic spray paint line are widely used to the workpiece which will be achieve high efficiency , high output.
7. Spraying painting machine can paint multi colors of product simultaneously.
Guangzhou Demasha Machine Technology Co, Ltd.
DEMA Machine Founded in 2009, with over 100 employees and 10,000 sqm factory, DEMA Machinehas over 12 years experiences in Printing machine. We have own Machine R&D Team, overseasengineer service available. DM/EM service available. High strict quality inspection for each machine. Cooperation with more than 100 enterprises. Hope we can cooperate in the future
One Stop Printing Machine
Support all machines about printing in 1 stop , save your time and cost
R & D Team
TWe have own and engineer for Mechanics
Private Custom
Meet your needs to custom the machine
Output Speed
Printing output speed can be 1200pcs / Hour
| Gross PowerAC 380V 50-60HZ 24KW |
| Automatic Grade:Automatic |
| Color/station:3 Colors Multi-Station |
| Dimensions(L*W*H):L2300*W1750*H1850mm |
| Weight:1740 KG |
| Certification:ISO9001 |
| Max. Print Area:diameter 25-120mm*H30-180mm |
| Warranty: 5 Years |
| Printing speed: 1200 PCS/MIN |
| Application area:Round, Oval, Square Bottles; Plastic, glass, metal products etc. |
