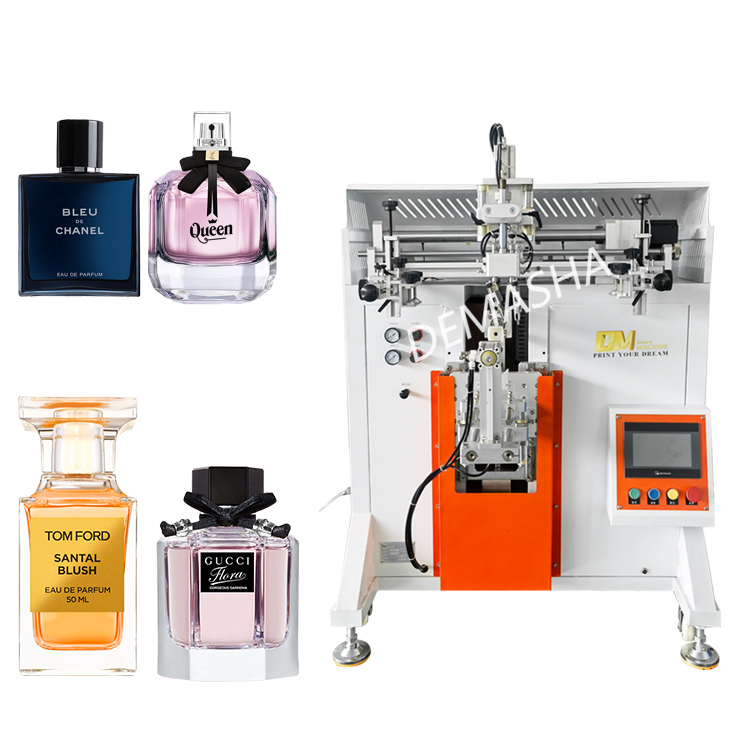

DM Semi Automatic Screen Printing Machine with 4 Servo and Sensor for fan-shaped, round and oval, square, special-shaped bottles

DM-650-4S
Max. printing size(mm)：round 260*200mm;
oval & shaped bottle & polygons 260*180mm
Printing size(mm):
round Φ20-Φ80mm;
oval & shaped bottles R20-300mm;
polygons bottle L*W≦260mm;
Speed (pcs/min): 30-45 pcs/min
Power : AC220V 3Phase 50/60HZ 3KW
Dimension(L*W*H)：1030*760*1340mm
Weight(kg)：300
Press(bar)：0.5-0.7
fit for：round,oval,shaped,polygons

Product application range:
This machine is suitable for glass product packaging, wine bottle packaging, cosmetics packaging, medicine and food outer packaging containers, and the materials can be glass, plastic, ceramic, metal, etc.
Quantity:
Contact Now
add to cart

Functional features:
This machine is suitable for screen printing on the surface of various special-shaped containers such as fan-shaped, round and oval, square, special-shaped bottles (different curvatures on both sides), cones, etc. It has the advantages of convenient and fast debugging and installation, stable and reliable operation, strong versatility, high positioning accuracy, accurate color registration, and high printing efficiency. This machine can also use ordinary self-drying ink printing, UV ink printing, and high-temperature solid ink printing, with high adaptability.

It has outstanding advantages for the following bottle shapes and situations:

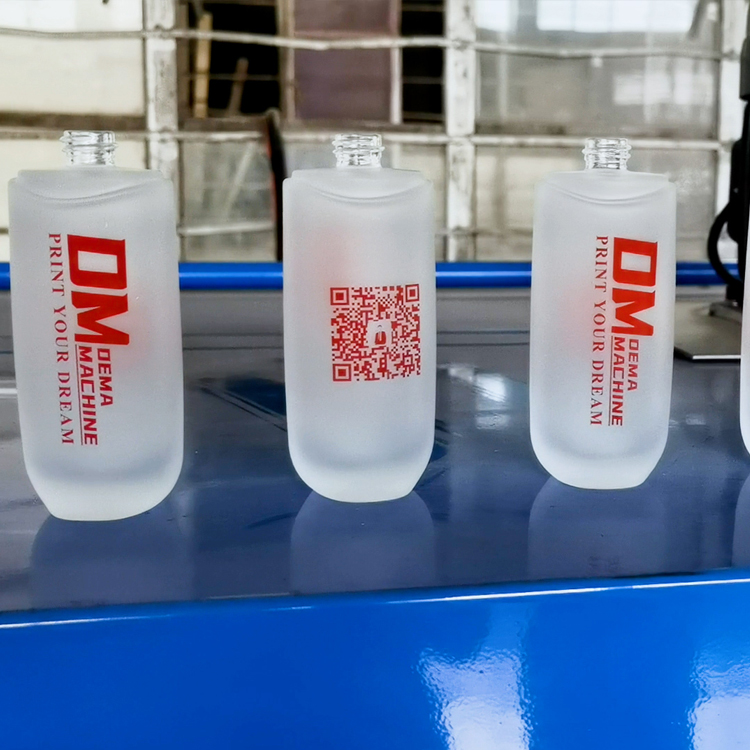

1. Oval bottles can achieve one-time printing of the same color on both sides at the same time, greatly improving the printing speed, and can also be printed on one side.

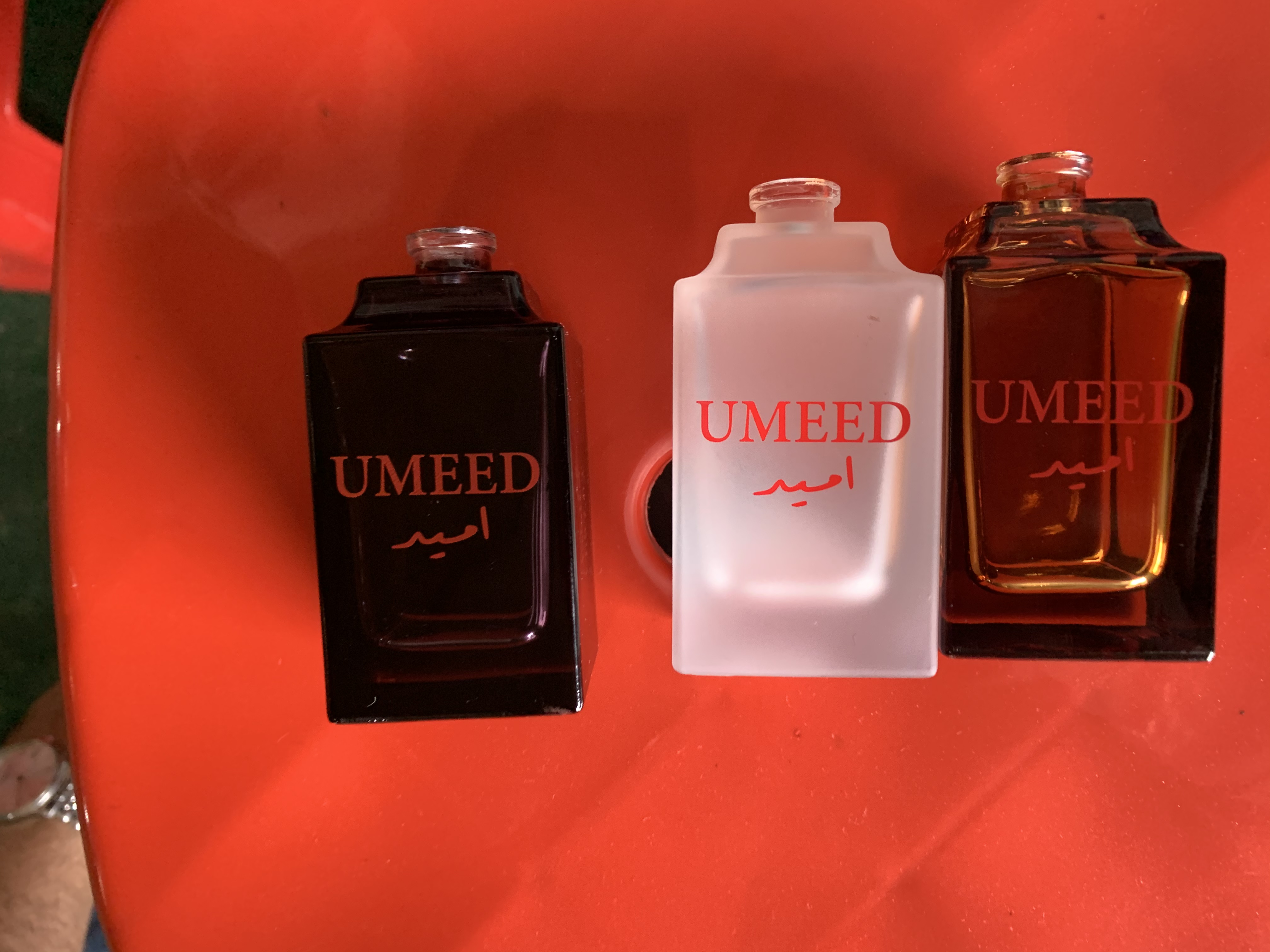

2. Square-shaped bottles can achieve one-time printing of the same color on one to four sides, and can also select any printing surface from one to four sides.
3. Round, oval, square and tapered bottles can adjust the tapered surface for printing. And the printing effect is good, solving the technical problems of stretching and deformation of traditional printing patterns.

Machine structure features:
The machine structure mainly consists of manual feeding structure, full servo system transmission structure, and automatic printing body (printing system). Adopt modular programmable processor and touch screen display control system, which runs more smoothly. Fewer fixtures make it easy to change bottle shapes, simple debugging and installation, and more convenient operation. Color mark positioning can be added as an option, the machine is stable, high precision, and accurate color registration.
