New Designed Four Colors Multi Stations Fully Automatic CNC UV LED For Bottles Screen Printing Machine
DM-401
minimum order
1 set
Country of Origin
Guangzhou,Hongkong,Shenzhen
Quantity:
US $128000.00 - US $132000.00 / set
Product Overview

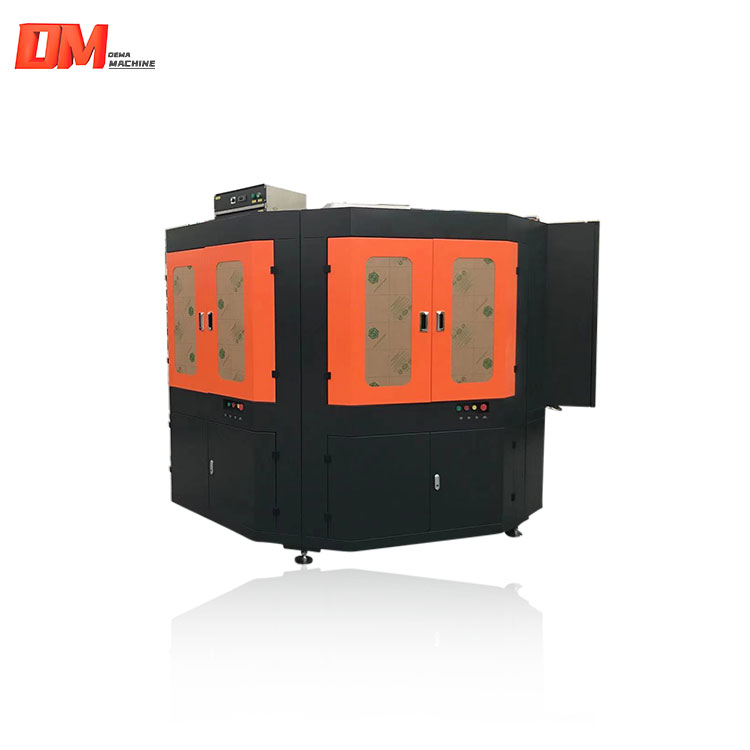

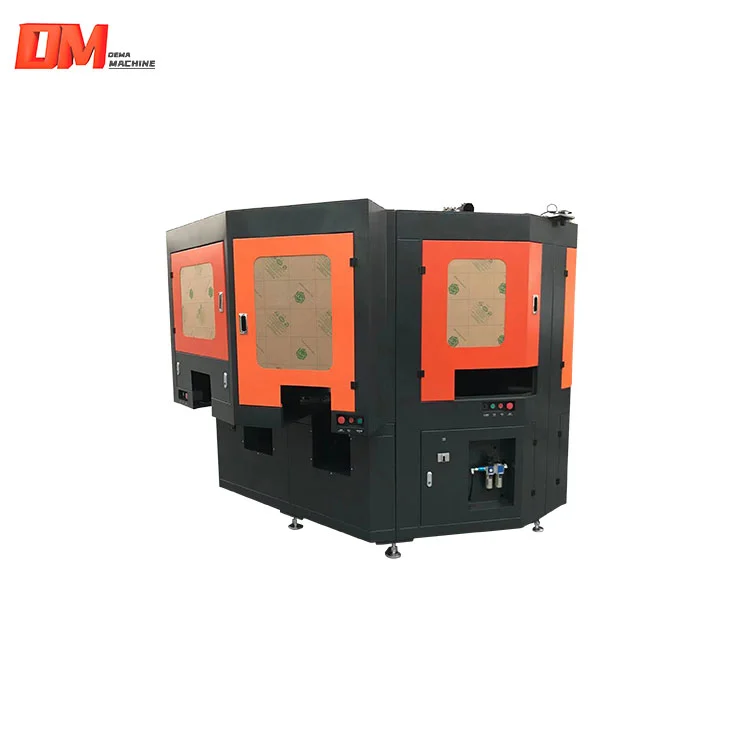

DM-401 Fully Automatic Screen Printing Machine
Features:
1.All the structures of the equipment are designed according to the international mechanical standards, integrated into the European and American automatic mechanical equipment design concept, accurate color, high speed, simple debugging.
2.Adopt high precision divider and full servo control system to improve the color accuracy and stability of the product. Advanced modular program controller and touch screen operation control, convenient and flexible debugging, high degree of automation,simpleand quick parameter setting, easy to realize man-machine dialogue.
1.All the structures of the equipment are designed according to the international mechanical standards, integrated into the European and American automatic mechanical equipment design concept, accurate color, high speed, simple debugging.
2.Adopt high precision divider and full servo control system to improve the color accuracy and stability of the product. Advanced modular program controller and touch screen operation control, convenient and flexible debugging, high degree of automation,simpleand quick parameter setting, easy to realize man-machine dialogue.
3.The machine is a combination of mechanical transmission and pneumatic, using photoelectric sensor induction limit control,stableand reliable operation, to ensure the printing accuracy and high quality printing effect.
4.It has automatic detection functions such as no parts no printing, no material alarm, low air pressure alarm, overload and loading and unloading fault alarm, to ensure the continuity and stability of the machine operation.
5.The main frame of the product is welded with high-quality steel parts. The host adopts circular design and transparent
plexiglass protective door, which shows the humanization and safety of operation in the appearance design and conforms to the European safety standard. Feeding conveying mechanism and unloading conveying mechanism can be lengthened or shortened according to the specific requirements of equipment users.
6.The pneumatic components and electrical parts of the equipment are all adopted famous brands such as SMC, KEYENCE, etc., to optimize the quality assurance performance.
7.Color positioning adopts high-precision visual positioning. UV curing adopts low energy consumption and high efficiency LED curing.
8.Automatic blanking by manipulator.
4.It has automatic detection functions such as no parts no printing, no material alarm, low air pressure alarm, overload and loading and unloading fault alarm, to ensure the continuity and stability of the machine operation.
5.The main frame of the product is welded with high-quality steel parts. The host adopts circular design and transparent
plexiglass protective door, which shows the humanization and safety of operation in the appearance design and conforms to the European safety standard. Feeding conveying mechanism and unloading conveying mechanism can be lengthened or shortened according to the specific requirements of equipment users.
6.The pneumatic components and electrical parts of the equipment are all adopted famous brands such as SMC, KEYENCE, etc., to optimize the quality assurance performance.
7.Color positioning adopts high-precision visual positioning. UV curing adopts low energy consumption and high efficiency LED curing.
8.Automatic blanking by manipulator.

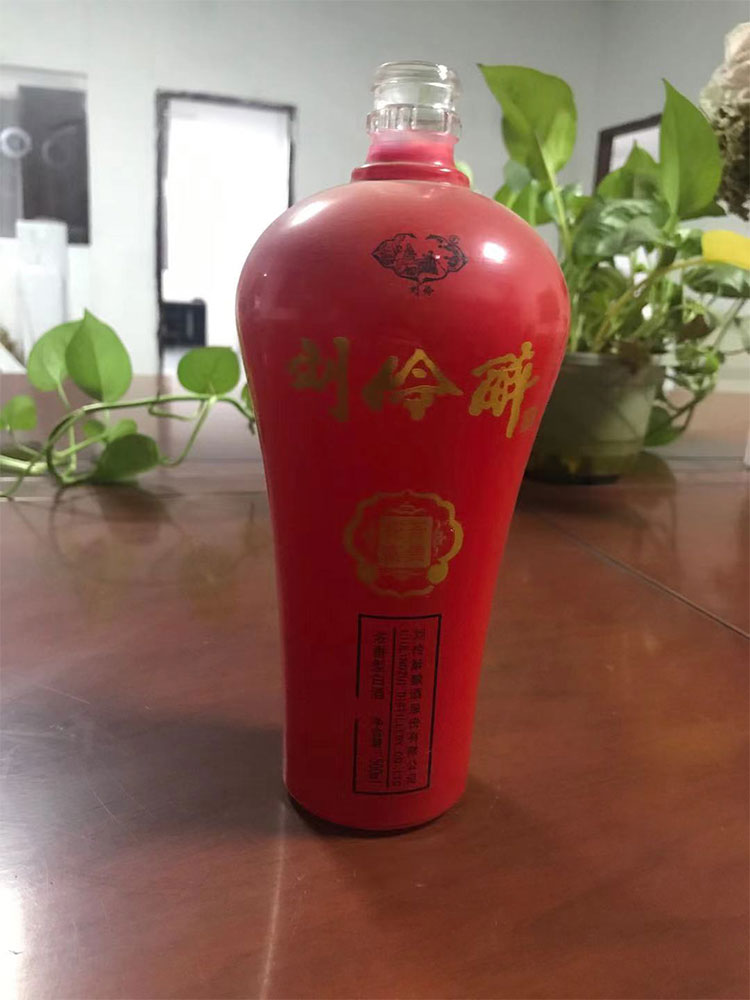

Effect
Products Description
Model | DM-101 | DM-102 | DM-401 | ||
Fit for shapes | Round; Oval; Square | ||||
Output(pcs/min) | 35-45 | 40-45 （print 4 colors at the same time) | |||
Print area | dia 2-10cm, length:2-13cm | dia 1.5-10cm, length: 5-33cm | |||
Air pressure(Mpa) | 0.5-0.6 (5-6bar) | 0.4-0.6 (4-6bar) | |||
Air sonsumption (L/min) | 200 | ||||
Power | 6.5KW | 30KW | |||
Input Voltage | AC380V 3P 50/60HZ | AC380V 3P 50/60HZ | |||
Dimensions(L*W*H) | 250×6×110cm | 400*287*222cm | |||
Uploading belt size | 150*6*110cm | 165*8*110cm | |||
Downloading belt size | 250×6×110cm | 165×8×110cm | |||
Weight(kg) | 1000KG | 6000KG | |||
