New Product Electric Type High Precision And High Efficiency Flatbed Silk Screen Printing Machine
DM-4060
minimum order
1 set
Country of Origin
Guangzhou,Hongkong,Shenzhen
Quantity:
US $5000.00 - US $5200.00 / set
Products Description

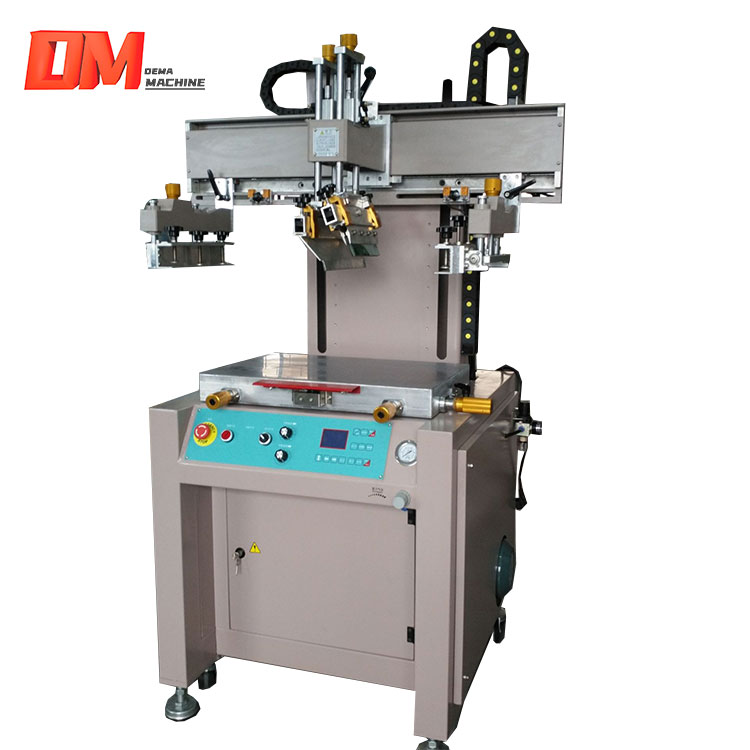

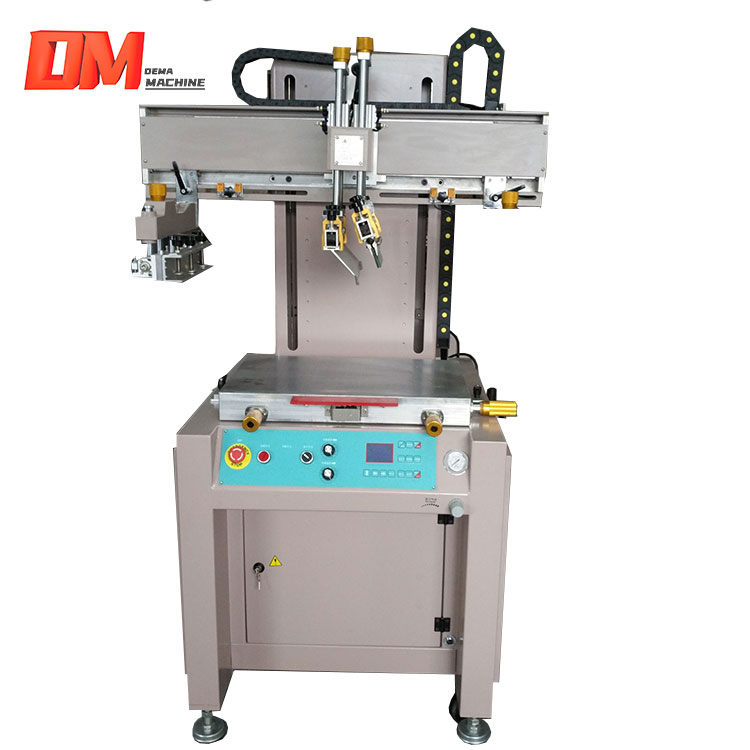

DM-6080 Flatbed Silk Screen Printing Machine
This is an electric type of high precision and high efficiency flat screen printing machine, using the original pneumatic components imported from Japan and Taiwan. Double column structure, smooth printing, small vibration, high precision, accurate multi-color overprint; The left and right gliding guide adopts precision linear guide rail. Double guide post left and right net clamp arm, plate distance adjustment device is installed at the same time, printing accuracy: ± 0.02mm, running speed can reach 800 times per hour. The printing mode is manual/semi-automatic/automatic, and the indirect time of printing action can be
controlled digitally. Independent design of the head lifting device, so that scraping ink/oil return knife, screen plate loading and unloading and screen cleaning convenient. This machine adopts a complete package, free of maintenance. Safe and beautiful,simple operation, convenient fetching, greatly improve the production efficiency.
controlled digitally. Independent design of the head lifting device, so that scraping ink/oil return knife, screen plate loading and unloading and screen cleaning convenient. This machine adopts a complete package, free of maintenance. Safe and beautiful,simple operation, convenient fetching, greatly improve the production efficiency.
Application:
This machine is suitable for printing PCB board, silica gel, textile, flexible circuit board, PET, paperboard, nameboard,trademark, IC board, thin film switch circuit, mobile phone lens, glass, liquid crystal display board and signs and other plane profile materials.
This machine is suitable for printing PCB board, silica gel, textile, flexible circuit board, PET, paperboard, nameboard,trademark, IC board, thin film switch circuit, mobile phone lens, glass, liquid crystal display board and signs and other plane profile materials.
Introduction:
1.PLC with four key compiler action program, durable, simple maintenance.
2.A variety of printing cycles are designed, and users can choose freely according to the printing process.
3.Cast aluminum fuselage, surface metal baking paint.
4.Double column lifting structure, high precision, smooth operation.
5.The scraper head is driven by electric power, which is stable and reliable with high precision.
6.The scraper constant pressure device ensures the stable pressure in the printing process
7.The Angle of scraper/return ink cutter can be adjusted arbitrarily.
8.High precision fine-tuning worktable, with self-locking device, the adjustment precision can reach 0.01mm.
9.The position of mesh frame can be adjusted before and after, around and horizontally.
10.The printing head can be lifted, easy to take and put the screen.
11.Taiwan Shilin Inverter to adjust the left and right sliding speed.
12.The work surface is equipped with emergency stop device to prevent hand injury.
1.PLC with four key compiler action program, durable, simple maintenance.
2.A variety of printing cycles are designed, and users can choose freely according to the printing process.
3.Cast aluminum fuselage, surface metal baking paint.
4.Double column lifting structure, high precision, smooth operation.
5.The scraper head is driven by electric power, which is stable and reliable with high precision.
6.The scraper constant pressure device ensures the stable pressure in the printing process
7.The Angle of scraper/return ink cutter can be adjusted arbitrarily.
8.High precision fine-tuning worktable, with self-locking device, the adjustment precision can reach 0.01mm.
9.The position of mesh frame can be adjusted before and after, around and horizontally.
10.The printing head can be lifted, easy to take and put the screen.
11.Taiwan Shilin Inverter to adjust the left and right sliding speed.
12.The work surface is equipped with emergency stop device to prevent hand injury.
Model | DM-2030 | DM-4060 | DM-5070 | DM-6080 |
Output | 2000PCS/H | 1200PCS/H | 600PCS/H | 660PCS/H |
Max Print Area(cm) | 30*20CM | 40*60CM | 50*70CM | 60*80CM |
Size of Printing Table: | 40*22CM | 50*70CM | 60*80CM | 70*90CM |
Power | 500W | 950W | 2.6KW | 1.5KW |
Input Voltage | 220V 60/50HZ | 220V 60/50HZ | 220V | 220V 50HZ |
Dimensions(cm)L*W*H | 55*60*90CM | 125*95*163CM | 110*130*175CM | 155*110*185CM |
Approximate Weight | 90KG | 150KG | 300KG | 310KG |

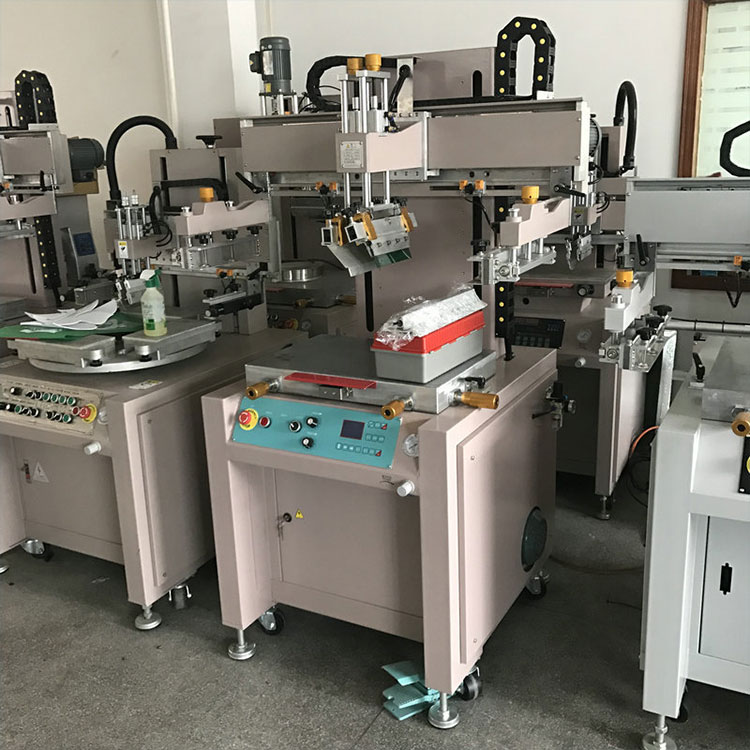

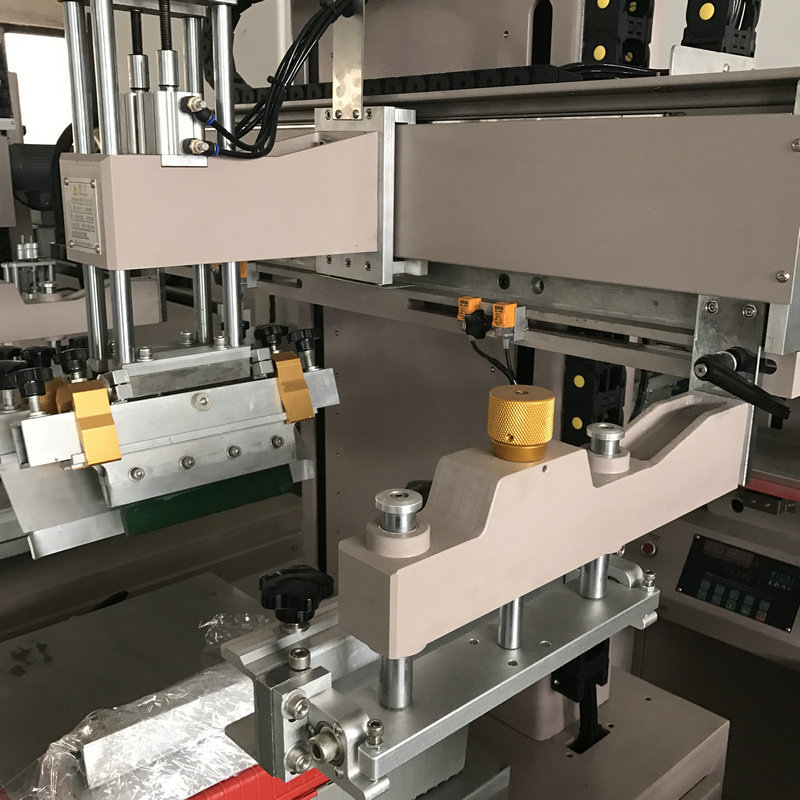

Details Images
Product packaging
Company Profile
Certifications
