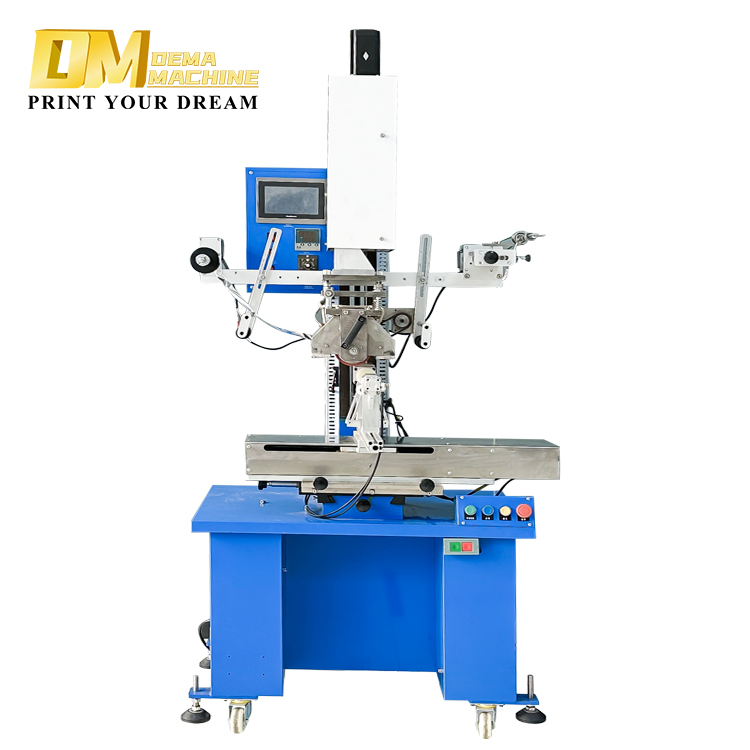

Round And Flat plastic cup Hot Foil Stamping Machine For Cosmetic Bottle Glass Bottle
DM-2B-3S
semi Auto screen printing machine
Fit for Round, flat shaped
Output(pcs/min): 15-35 pcs/min
Max Printing Area: Circum: 220mm , height: 100mm (round bottle)
Circum:220mm ,height: 100mm (flat bottle)
Printing model size: Model height:30-170mm Model dia.:Φ20~70mm (round bottle)
Printing model size: Model height:30-170mm Model dia.:L*W≤210mm (flat bottle)
Power : AC220V 2Phase 50/60HZ
Air pressure(Mpa): 0.5-0.7 (5-7bar)
Air sonsumption (L/min): 50
Power：5KW
Dimensions(L*W*H): 900*600*1950mm
Weight(kg): 300kg
Fit for Round, flat shaped
Output(pcs/min): 15-35 pcs/min
Max Printing Area: Circum: 220mm , height: 100mm (round bottle)
Circum:220mm ,height: 100mm (flat bottle)
Printing model size: Model height:30-170mm Model dia.:Φ20~70mm (round bottle)
Printing model size: Model height:30-170mm Model dia.:L*W≤210mm (flat bottle)
Power : AC220V 2Phase 50/60HZ
Air pressure(Mpa): 0.5-0.7 (5-7bar)
Air sonsumption (L/min): 50
Power：5KW
Dimensions(L*W*H): 900*600*1950mm
Weight(kg): 300kg
minimum order
1 set
Supply Ability
10000set / Month
Country of Origin
China
Stock Time
20Day
Quantity:
US $9500.00 - US $10000.00 / set
Guangzhou Demasha Machine Technology Co, Ltd.
DEMA Machine Founded in 2009, with over 100 employees and 10,000 sqm factory, DEMA Machinehas over 12 years experiences in Printing machine. We have own Machine R&D Team, overseasengineer service available. DM/EM service available. High strict quality inspection for each machine. Cooperation with more than 100 enterprises. Hope we can cooperate in the future
One Stop Printing Machine
Support all machines about printing in 1 stop , save your time and cost
R & D Team
TWe have own and engineer for Mechanics
Private Custom
Meet your needs to custom the machine
Semi Auto screen printing machine/Silk screen printing machine/Screen printer Fit for Round, flat shaped Bottles.
Output(pcs/min): 15-35 pcs/min
Max Printing Area: Circum: 220mm , height: 100mm (round bottle)
Circum:220mm ,height: 100mm (flat bottle)
Printing model size: Model height:30-170mm Model dia.:Φ20~70mm (round bottle)
Printing model size: Model height:30-170mm Model dia.:L*W≤210mm (flat bottle)
Power : AC220V 2Phase 50/60HZ
Air pressure(Mpa): 0.5-0.7 (5-7bar)
Air sonsumption (L/min): 50
Power：5KW
Dimensions(L*W*H): 900*600*1950mm
Weight(kg): 300kg
Output(pcs/min): 15-35 pcs/min
Max Printing Area: Circum: 220mm , height: 100mm (round bottle)
Circum:220mm ,height: 100mm (flat bottle)
Printing model size: Model height:30-170mm Model dia.:Φ20~70mm (round bottle)
Printing model size: Model height:30-170mm Model dia.:L*W≤210mm (flat bottle)
Power : AC220V 2Phase 50/60HZ
Air pressure(Mpa): 0.5-0.7 (5-7bar)
Air sonsumption (L/min): 50
Power：5KW
Dimensions(L*W*H): 900*600*1950mm
Weight(kg): 300kg
Machine Features:

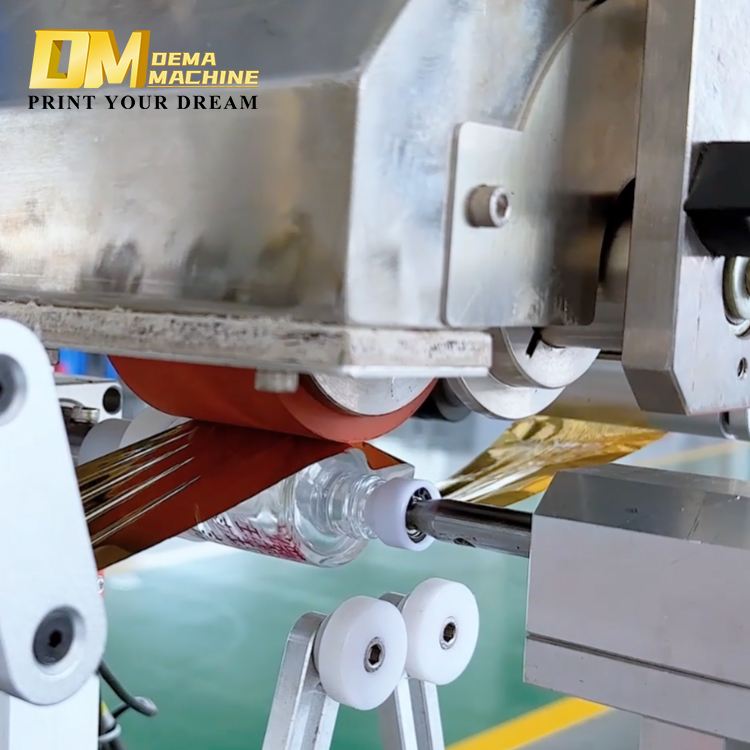

1. This machine is suitable for one-time hot transfer hot stamping of round, oval, square, special-shaped, polygonal bottles, etc.
2. The paper collection part adopts stepper motor (servo motor) to collect paper, which is more accurate, thereby reducing the cost of hot stamping paper
3. The electrical components are all world-famous brands such as Europe and America (Schneider), Taiwan (Dongweiting), Japan (SMC, Omron), etc.
4. It adopts imported precision motion controller (PLC) connected with touch screen. For various bottle types, you only need to enter parameters to generate graphics, thereby reducing the debugging time
1. This machine is suitable for one-time hot transfer hot stamping of round, oval, square, special-shaped, polygonal bottles, etc.
2. The paper collection part adopts stepper motor (servo motor) to collect paper, which is more accurate, thereby reducing the cost of hot stamping paper
3. The electrical components are all world-famous brands such as Europe and America (Schneider), Taiwan (Dongweiting), Japan (SMC, Omron), etc.
4. It adopts imported precision motion controller (PLC) connected with touch screen. For various bottle types, you only need to enter parameters to generate graphics, thereby reducing the debugging time
Application range:
Product application range: This machine is suitable for glass product packaging, wine bottle packaging, cosmetics packaging, medicine and food outer packaging containers, and the materials can be glass, plastic, ceramic, metal, etc.
Product application range: This machine is suitable for glass product packaging, wine bottle packaging, cosmetics packaging, medicine and food outer packaging containers, and the materials can be glass, plastic, ceramic, metal, etc.
