Silk Screen Printing Ink Skateboard Printing Machine Semi Auto Flatbed Printer
DM-4060
minimum order
1 set
Country of Origin
Guangzhou,Hongkong,Shenzhen
Quantity:
US $3750.00 - US $3900.00 / set
Products Description

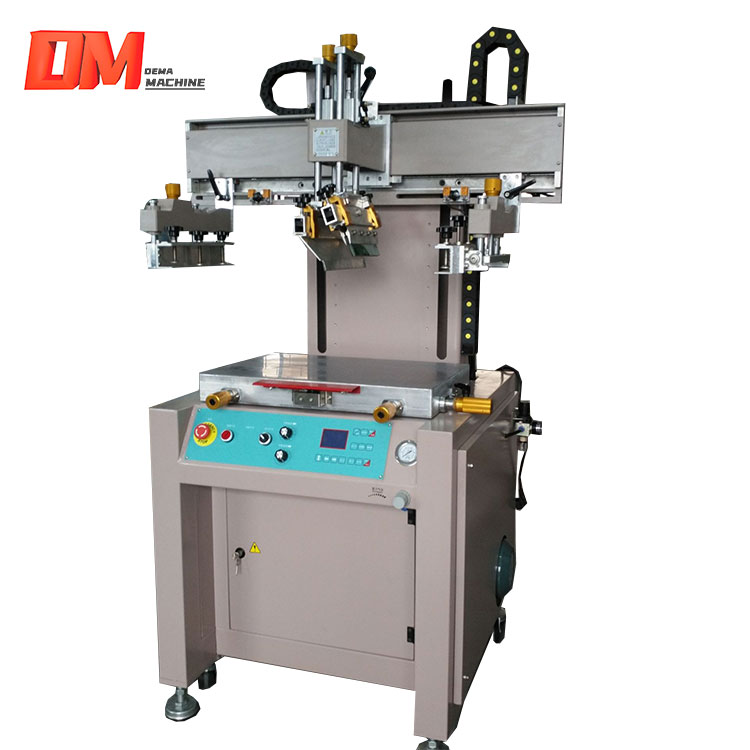

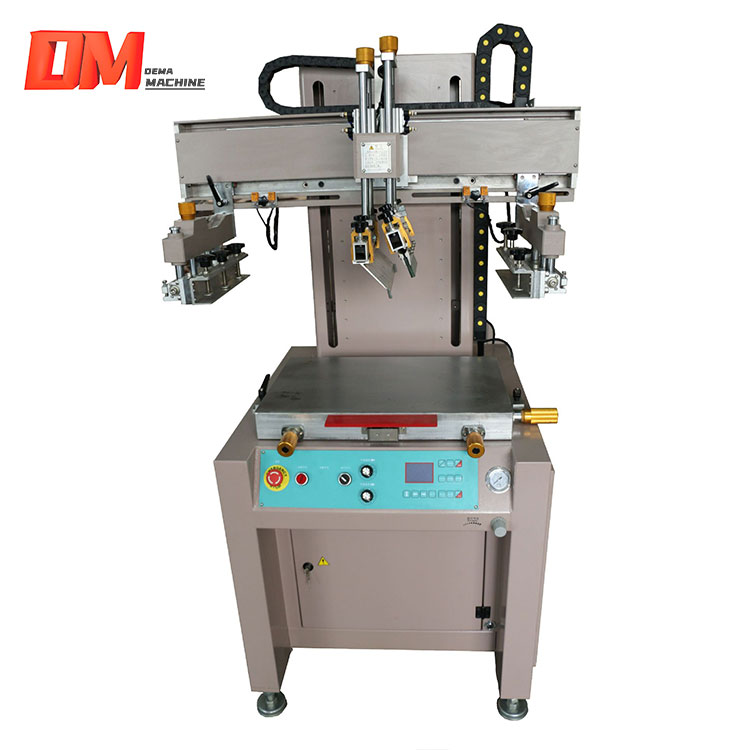

DM-4060 Faltbed Screen Printing Machine
1.PLC with four key compiler action program, durable, simple maintenance.
2.A variety of printing cycles are designed, and users can choose freely according to the printing process.
3.Cast aluminum fuselage, surface metal baking paint.
4.Double column lifting structure, high precision, smooth operation.
5.The scraper head is driven by electric power, which is stable and reliable with high precision.
6.The scraper constant pressure device ensures the stable pressure in the printing process
7.The Angle of scraper/return ink cutter can be adjusted arbitrarily.
8.High precision fine-tuning worktable, with self-locking device, the adjustment precision can reach 0.01mm.
9.The position of mesh frame can be adjusted before and after, around and horizontally.
10.The printing head can be lifted, easy to take and put the screen.
11.Taiwan Shilin Inverter to adjust the left and right sliding speed.
12.The work surface is equipped with emergency stop device to prevent hand injury.
2.A variety of printing cycles are designed, and users can choose freely according to the printing process.
3.Cast aluminum fuselage, surface metal baking paint.
4.Double column lifting structure, high precision, smooth operation.
5.The scraper head is driven by electric power, which is stable and reliable with high precision.
6.The scraper constant pressure device ensures the stable pressure in the printing process
7.The Angle of scraper/return ink cutter can be adjusted arbitrarily.
8.High precision fine-tuning worktable, with self-locking device, the adjustment precision can reach 0.01mm.
9.The position of mesh frame can be adjusted before and after, around and horizontally.
10.The printing head can be lifted, easy to take and put the screen.
11.Taiwan Shilin Inverter to adjust the left and right sliding speed.
12.The work surface is equipped with emergency stop device to prevent hand injury.
Model | DM-4060 | DM-6080 | DM-80120 | |
Printing speed | 800 (m / min) | 800 (m / min) | 1000 (m / min) | |
Maximum print area (length × width) | 450 * 650 (mm) | 750 * 550 (mm) | 950 * 700 (mm) | |
Thickness Range | 80 (mm) | 0-50 (mm) | 0-50 (mm) | |
Workbench size | 500 * 700 (mm) | 800 * 600 (mm) | 1200 * 800 (mm) | |
Maximum network frame size | 15 (mm) | 20（mm) | 25(mm) | |
Power supply: | 220V | 220V | 380V | |
Dimensions | 1000 * 1200 * 1800 (mm) | 900 * 850 * 1900 (mm) | 1700 * 1100 * 1550 (mm) | |
Weight | 320 (kg) | 308 (kg) | 500 (kg) | |
